Range

50KM
Range (Measured)

Battery

36V 10Ah Sattelstützentyp Lithium Samsung

Speed

25Km/h
Top Speed

Motor

36V250W Rear Motor, Max.45N.m

Integrated battery in Ace series

Placing the battery directly under the saddle helps distribute the weight evenly, which significantly affects stability and balance (especially in rougher terrain or at higher speeds). Additionally, the cell is better protected from external factors, which extends its life and efficiency while creating a cohesive look.

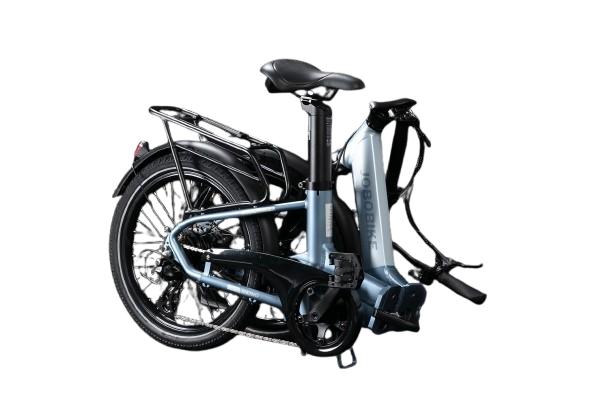

Folding frame

The Ace series bikes can be easily folded and stored in a home environment, office or other small spaces, which allows for space saving. Once folded, the e-bike becomes easy to transport on public transport or in the trunk of a car, making travel more flexible. For example, you can ride to a bus stop, fold the bike and take it with you. Once you arrive at your destination, simply unfold it, thus solving the problem of the "last mile".

unique and elegant designed E-bikes that make you feel comfortable while riding

Details

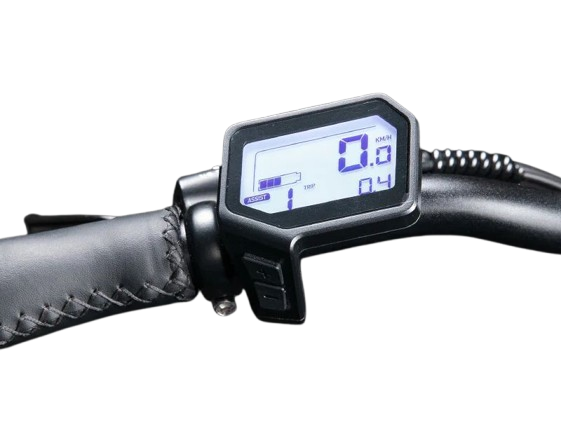

LCD Display

The bright LCD display with Bluetooth function provides all the necessary information while driving.

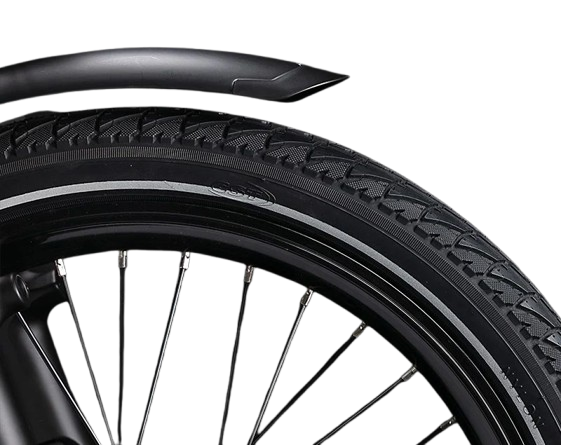

CST Tires

20-inch CST tires with counter-rotating grooves and reflective stripes improve tire durability and safety when driving after dark.

Folding pedals

Durable, corrosion-resistant, foldable pedals provide the durability and comfort of a conventional e-bike drive.

Specification

Battery	36V 10Ah （360Wh) Seat post type lithium Samsung
Motor	36V250W Rear Motor, Max.45N.m
Display	LCD display with bluetooth function
Charger	36V 2.0A
Pedal Assist	Intelligent 3 level pedal assist
Tires	CST 26" x 2.35"
Fork	Zoom Suspension Fork
Brake Levers	Tektro aluminum alloy comfort grip lever
Brake	Ace: Tektro Mechanical Disc Brake; Ace Pro: Tektro Hydraulic Disc Brake
Type	Step-thru Mid Motor City E-bike
Applicable Scene	Commuting & Urban

Frame	6061 Aluminum
Handlebar	240*160mm
Saddle	Comfort Seat
Kickstand	Single-leg aluminum alloy
Pedals	Foldable pedals
Seatpost	with battery
Fenders	PVC front and rear, full coverage
Derailleur	Shimano 7-speed
Controller	36V250W
Chain	KMC
Recommended Height	Above 155cm
Load Capacity	120kg
Net.Weight	22kg
Total Weight	26kg
Feature	Sensor Ace: Speed sensor; Ace Pro: Torque sensor
